HLO Isolation User Guide

This document explains how to install and use the HLO Isolation API and CLI. The HLO isolation tooling helps developers and researchers isolate, verify, and debug numeric mismatches and stability issues in compiled HLO modules.

Installation

You can use HLO isolation components through the standard OpenXLA/TensorFlow build mechanism (Bazel) or via binary distribution.

Source and Bazel Setup

When building the compiler and tools stack from source, include or depend on the following libraries:

  • API Target: //third_party/tensorflow/compiler/xla/tools/hlo_isolation:hlo_isolation_api
  • CLI Target: //third_party/tensorflow/compiler/xla/tools/hlo_isolation:hlo_isolation_test

To build the standalone CLI tool:

bazel build -c opt //third_party/tensorflow/compiler/xla/tools/hlo_isolation:hlo_isolation_test

Command-Line Interface (CLI)

The hlo_isolation_test CLI allows you to isolate and run numeric mismatch and stability checks against compiled HLO modules directly from a terminal. It compares the execution results across different environments (e.g., TPU vs. Defused TPU / CPU / Interpreter).

Flag Reference

The CLI supports the following flags:

  • --hlo_file: Path to the input .hlo or .pbtxt file to load. Can be text or proto format (required).
  • --test_platform: Target platform to run the primary test on (e.g., cpu, gpu, tpu). Defaults to cpu.
  • --reference_platform: Reference platform for baseline comparison (e.g., interpreter). If empty, reference comparison is disabled.
  • --filter_by_name: Regular expression to match the module name. Only matching modules will be run. Defaults to .*.
  • --skip_by_name: Regular expression to match the module name. Matching modules will be skipped.
  • --filter_by_opcode: Regular expression to match instruction opcodes. Only modules containing at least one matching opcode will be run. Defaults to .*.
  • --skip_by_opcode: Regular expression to match instruction opcodes. Modules containing any matching opcode will be skipped.
  • --abs_error_bound: Absolute error bound used for comparison. Defaults to 0.01.
  • --rel_error_bound: Relative error bound used for comparison. Defaults to 0.1.
  • --run_hlo_passes: Boolean flag to determine whether to run standard HLO passes on the submodules. Defaults to false.
  • --shard_index: The specific shard index to run (zero-based). Defaults to -1 (disabled).
  • --num_shards: The total number of shards. Defaults to 1.

Basic Invocation

./hlo_isolation_test \
  --hlo_file=/path/to/failing_fusion.hlo \
  --test_platform=gpu \
  --reference_platform=interpreter

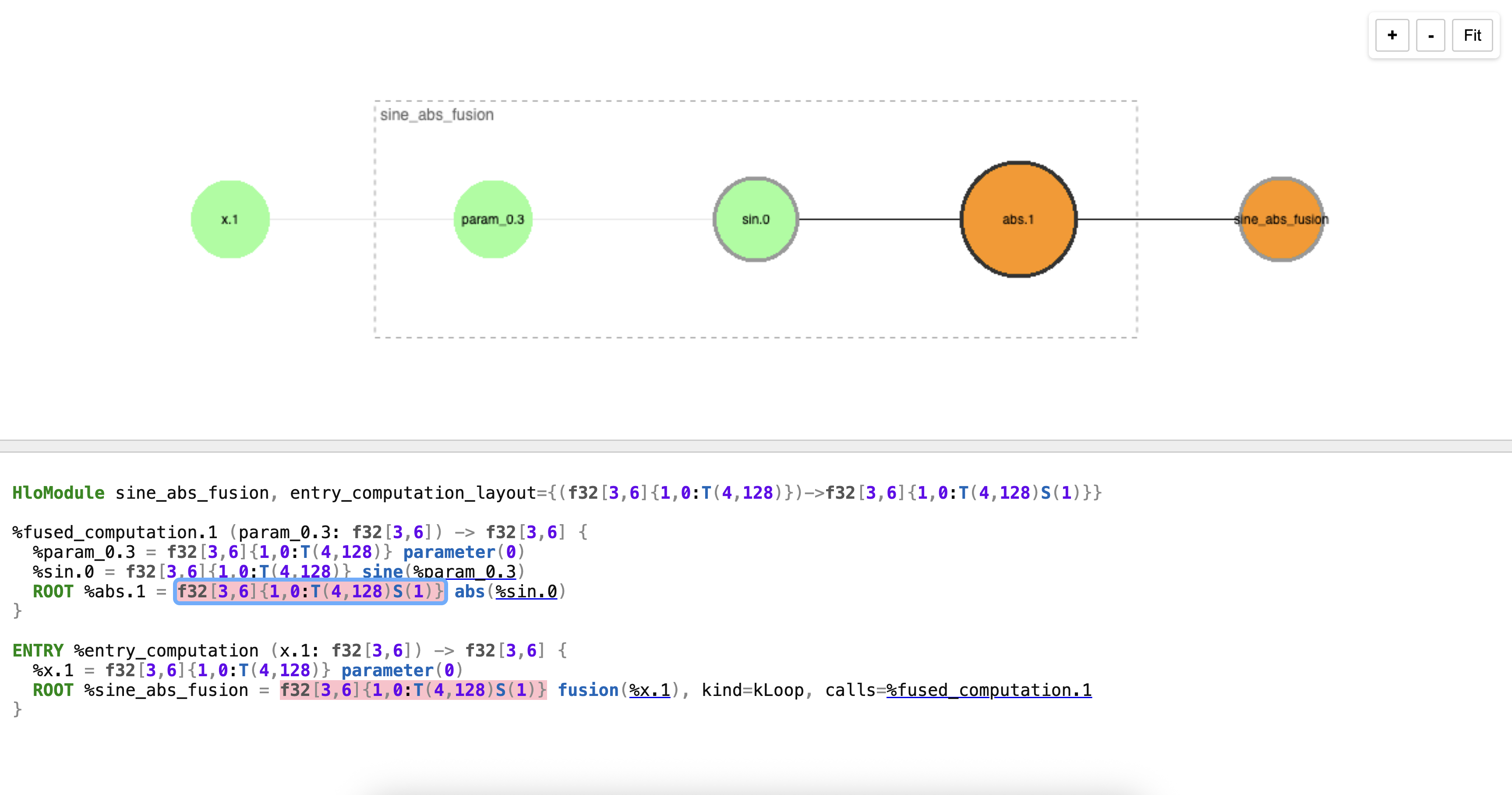

Result and Artifact Dumps

When a submodule encounters a numeric mismatch or other failure during isolation testing, the tool automatically serializes debug artifacts to disk for deeper inspection.

Dump Contents

On numeric mismatch, the tool writes the following debug artifacts:

  1. The failed HLO submodule text (failed-module-<module_name>.txt).
  2. The expected output literal (failed-<module_name>-expected.txt).
  3. The actual output literal (failed-<module_name>-actual.txt).
  4. The mismatching elements summary (failed-<module_name>-mismatches.txt).

Dump Target Location

  • Test Environment: If run via bazel test or an environment defining the TEST_UNDECLARED_OUTPUTS_DIR environment variable, the results are placed directly in that directory with the exact file names listed above (e.g., failed-<module_name>-expected.txt).
  • Standard/Manual Run: When executed manually via the command line, the artifacts are written to the operating system's temporary directory (e.g., /tmp), preserving the exact same unified file naming conventions (e.g., /tmp/failed-<module_name>-expected.txt).

C++ Integration and API

For developers building custom compiler passes, testing rigs, or automated pipelines, the C++ API provides a direct way to integrate isolation tests.

Using the API Directly

The core API provides functional interfaces to run modules and fetch structured reports:

#include "third_party/tensorflow/compiler/xla/tools/hlo_isolation/hlo_isolation_api.h"

xla::hlo_isolation::PipelineIsolationOptions options;
options.module_options.abs_error_bound = 0.01;
options.module_options.rel_error_bound = 0.1;
// Filter specific opcodes programmatically
options.filter_by_opcode = "exponential";

absl::StatusOr<std::vector<xla::HloIsolationTestResult>> results =
    xla::hlo_isolation::RunIsolationPipeline(
        input_hlo_module,
        &my_test_runner,
        &my_reference_runner,
        options);

Using the Test Mixin

When writing GoogleTest C++ test suites, you can inherit from HloIsolationTestMixin for built-in assertion handling. The base class must provide both a test runner and a reference runner (e.g., via HloPjRtInterpreterReferenceMixin):

#include "third_party/tensorflow/compiler/xla/tests/hlo_pjrt_interpreter_reference_mixin.h"
#include "third_party/tensorflow/compiler/xla/tools/hlo_isolation/hlo_isolation_test_base.h"

class MyCustomPassIsolationTest : public xla::hlo_isolation::HloIsolationTestMixin<
    xla::HloPjRtInterpreterReferenceMixin<xla::HloPjRtTestBase>> {};

TEST_F(MyCustomPassIsolationTest, ChecksMyFusionSanity) {
  RunAndVerifyIsolationTest(my_failing_module);
}

Sharded Execution (K8s/Slurm)

For large modules or heavy test matrices, you can partition execution across multi-device clusters (such as Google Kubernetes Engine or Slurm) using the sharding flags. Each shard_index deterministically runs an isolated subset of the decomposed submodules. This allows for reproducible distributed verification and targeted re-execution of failing partitions.

Example: Kubernetes Job

Each test shard is executed as a separate Kubernetes pod using completionMode: Indexed. The JOB_COMPLETION_INDEX is passed directly to the CLI's --shard_index flag.

apiVersion: batch/v1
kind: Job
metadata:
  name: hlo-isolation-job
spec:
  completions: 50
  parallelism: 50
  completionMode: Indexed
  template:
    spec:
      containers:
      - name: test-runner
        image: gcr.io/my-project/hlo-isolation-tools:latest
        command: ["/bin/sh", "-c"]
        args:
        - |
          ./hlo_isolation_test \
            --num_shards=50 \
            --shard_index=$JOB_COMPLETION_INDEX \
            --hlo_file=/data/path/to/hlo.hlo
        volumeMounts:
        - name: hlo-data-volume
          mountPath: /data
      volumes:
      - name: hlo-data-volume
        csi:
          driver: gcsfuse.csi.storage.gke.io
          volumeAttributes:
            bucketName: my-xla-debug-bucket

Key Capabilities

  • Portability: Decouples internal test wrappers from the standalone API, making it easy to debug HLO mismatches locally.
  • Granularity: Granular opcode and name filtering improves the debugging loop when interacting with massive HLO dumps.
  • Extensibility: Custom runner execution callbacks and data injectors (make_fake_arguments_fn) permit full customization for advanced verification workflows.
