Advanced Profiler Options

This document lists advanced profiling flags that are available in XProf but may not be documented in the main JAX profiling guide. These flags are typically used for fine-grained control, power monitoring, and detailed performance counter sampling on TPUs.

These flags are passed via the profiler_options parameter in jax.profiler.start_trace as part of the advanced_configuration dictionary.

Example:

options = jax.profiler.ProfileOptions()
options.advanced_configuration = {
    "tpu_power_trace_level": 1,  # Integer
    "tpu_perf_counters": True,  # Boolean
    "tpu_cpu_perf_counter_profile_events": "context-switches,page-faults",  # String
}
jax.profiler.start_trace("/tmp/profile-data", profiler_options=options)

Power and Thermal Events

These flags control the collection of power and thermal events on TPUs.

  • tpu_power_trace_level (Integer): Controls the level of power tracing. Supported values:
    • 0: POWER_TRACE_NONE (Default)
    • 1: POWER_TRACE_NORMAL
    • 2: POWER_TRACE_SPI (Enable SPI power trace, verbose)
  • tpu_e2e_enable_fw_throttle_event (Boolean): Enables firmware throttle events.
  • tpu_e2e_enable_fw_power_level_event (Boolean): Enables firmware power level events.
  • tpu_e2e_enable_fw_thermal_event (Boolean): Enables firmware thermal events.
  • tpu_enable_fw_pcie_utilization_event (Boolean): Enables firmware PCIe utilization events.

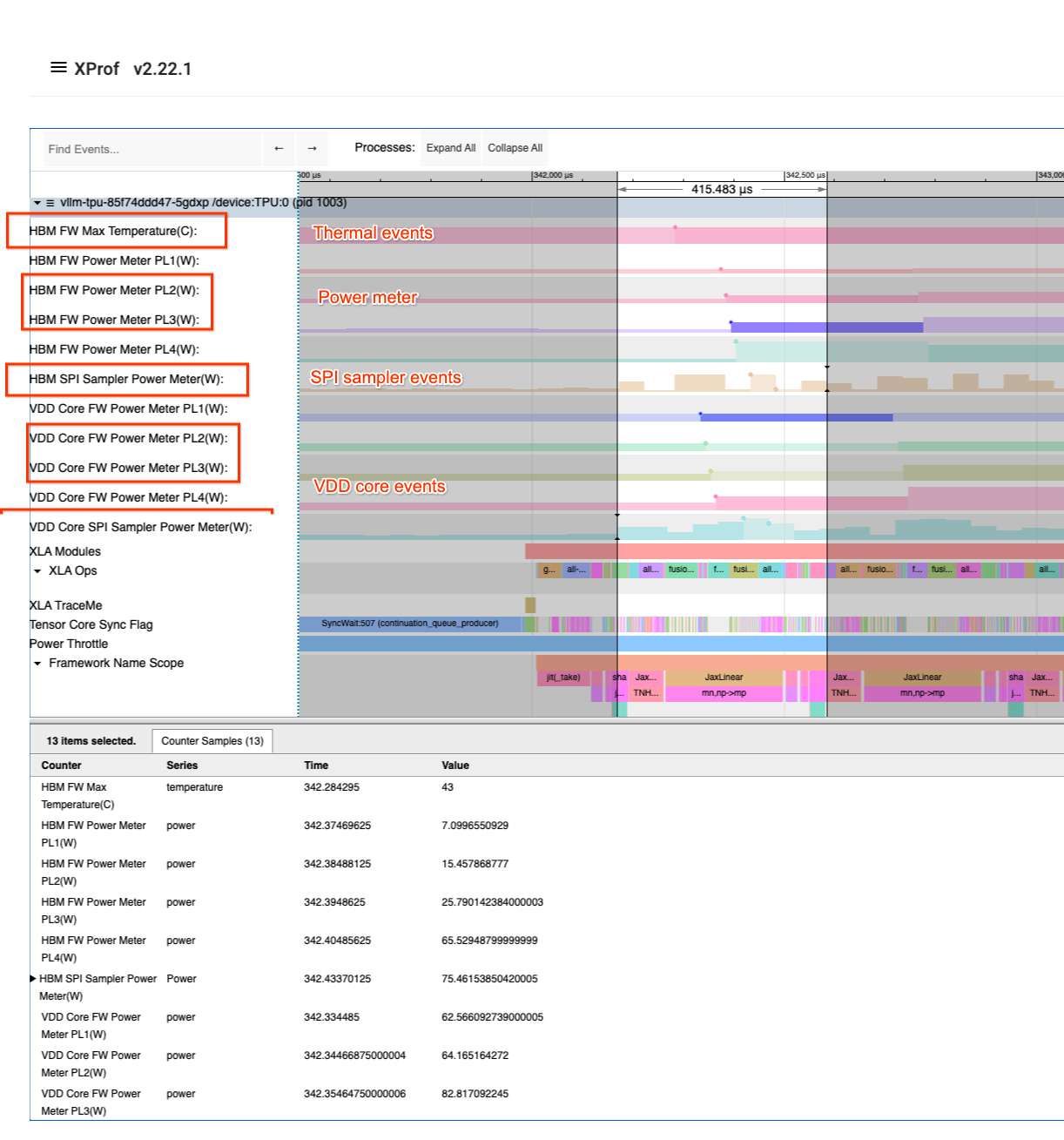

Power and Thermal Events

Tracemark Configuration

  • tpu_tracemark_lower (Integer): Lower bound for tracemark.
  • tpu_tracemark_upper (Integer): Upper bound for tracemark.

Periodic Counter Sampling Options

These options configure periodic sampling of various performance counters on the TPU.

  • tpu_enable_periodic_counter_sampling (Boolean): Enables periodic counter sampling.
  • tpu_tc_perf_counter_sampling_options (String): Options for TC perf counter sampling. Expects a text proto string of xprof::XprofRequest::PeriodicCounterSamplingOptions.
  • tpu_scs_perf_counter_sampling_options (String): Options for SCS perf counter sampling.
  • tpu_sctc_perf_counter_sampling_options (String): Options for SCTC perf counter sampling.
  • tpu_sctd_perf_counter_sampling_options (String): Options for SCTD perf counter sampling.
  • tpu_cmn_perf_counter_sampling_options (String): Options for CMN perf counter sampling.
  • tpu_icr_perf_counter_sampling_options (String): Options for ICR perf counter sampling.

Other Advanced TPU Options

  • tpu_perf_counters (Boolean): Boolean to enable/disable TPU performance counters.
  • max_trace_buffers (Integer): Controls the maximum size of trace buffers.
  • tpu_circular_buffer_tracing (Boolean): Enables circular buffer tracing.
  • tpu_watched_sync_flag_number (Integer): Watched sync flag number.
  • tpu_watched_sync_flag_mask (Integer): Watched sync flag mask.
  • tpu_sc_dma (Boolean): Controls TPU SC DMA tracing.
